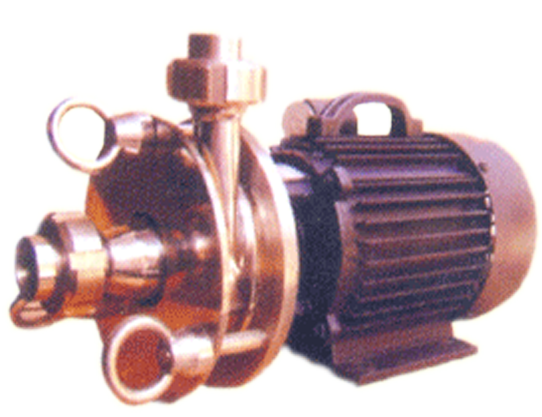

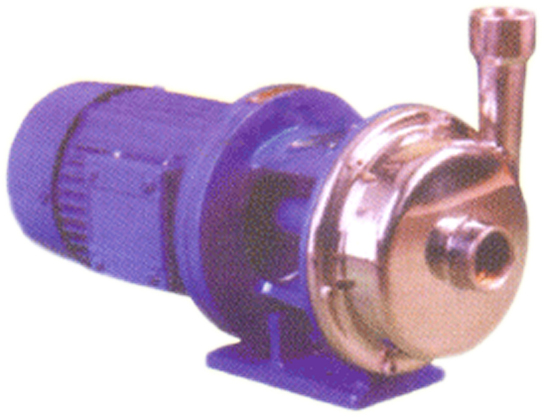

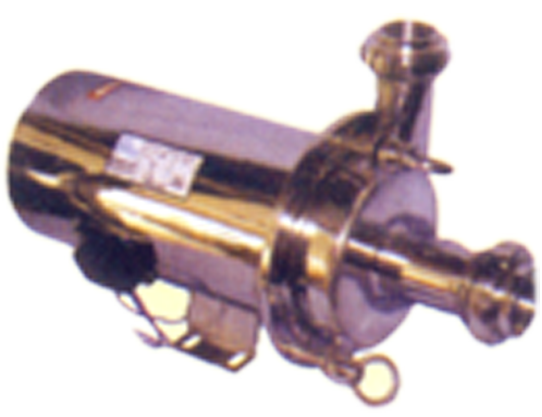

DAIRY PUMPS :





Applications :

  • Milk, Cream, Butter Milk, Condensed Milk.

  • Fruit Juice, Beer, Wine, Sugar Syrup, Vitamin Solutions, Sugar & Confectionery.

  • R.O. Water, DM Water, Pure Water.

  • Water for Injection (WFI)

  • Vegetable Oil, Mineral Oil, Lub Oil etc.

  • Pharmaceutical Formulations, Syrup etc.

  • Alkaline Solution/Alcoholic Drinks.

  • Acids, Fine Chemicals.

  • Bottling Plants, Soft Drinks & Distillery.

  • Food Processing/Liquid Food Stuffs.

  • Water Treatment Plants.

  • Colour dyes and Pigments/Paints.

  • Descaling Applications, Paper & Cement Industries.

  • Detergent, Soaps, Paste & Shampoo

  • Textile Sizing, Dyeing & Finishing Systems.

  • Nature Cellulose Fiber/Synthetic Fiber System

  • Hot & Cold Water Pumping.

Features :

  • All pumps are made from rolled stainless steel, mechanical properties are far superior then cast material.

  • Fruit Juice, Beer, Wine, Sugar Syrup, Vitamin Solutions, Sugar & Confectionery.

  • Super finish surface also ensure no ingress or emission of germs or impurities during pumping or idling which is basic requirement of sterlie/ hygienic application.

  • Designed for CIP(clean in place) or manual cleaning.

  • Pumps are highly energy efficient and requires less NPSH to function without cavitation.

  • Pump can handles liquids having viscosities up to 1500 centipoise.

  • The pumps can work under a vacuum of 720 mm of Hg. suitable for vacuum evaporators.

  • Pumps are available with open/semiopen impellers.

  • Bottling Plants, Soft Drinks & Distillery.

  • Minimum working/rotating parts.

  • Safeand quite operation levels.

  • Gentle product handling with lower maintenance and downline cost.

  • Dynamically combinations of seal faces as per customer's requirement (single seal/double seal, seal external cooling).

  • Suitable for standard motor or flange type motor or engine.

  • Monobloc or bare pumps or with trolley.

  • Also with flame proof motors.

  • Various types of connections like - triclove joints SMS, flanges or threaded nipple/caupling.

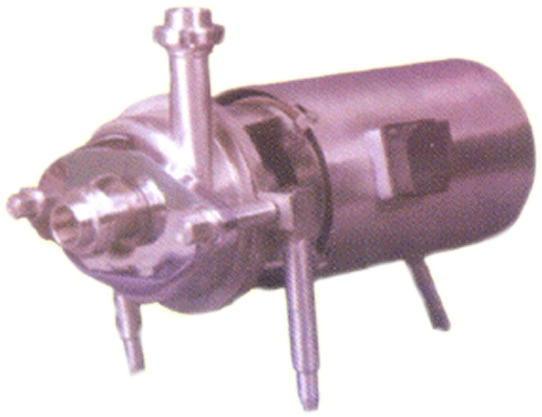

  • Pumps with adjustable legs, available on request.

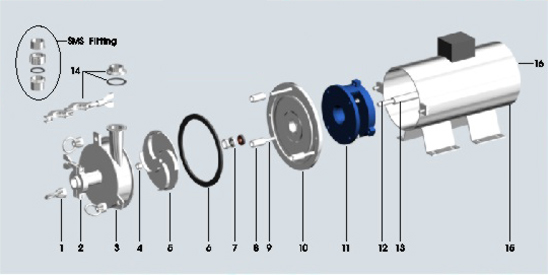

No.
Description
No.
Description
MATERIAL OF CONSTRUCTION
1
Eye Type Wing Nut
9
Stud S.S.
Casing
AISI 316/316L/304L/304
2
Triclover Joint
10
Back Plate S.S.
Impeller
AISI 316/316L/304L/304
3
Casing S.S.
11
Bearing Bracket CI
Wear plate
AISI 316/316L/304L/304
4
Impeller NUT S.S.
12
Impeller Key S.S.
Shaft
AISI 316/316L/304L/304
5
Impeller S.S.
13
Rotor Shaft S.S.

or even seal less in special application
6
Gasket
14
Part of Triclover
Motor Cover
SS-304/202
7
Machanical Seal
15
Motor Cover S.S.
Gasket
Viton /Nitrile/Silicon/Teflon
8
Distance Piece S.S.
16
Motor




Model H.P. Size Head in Meters Discharge in LPM at 2900 RPM
3 5 7 10 12 15 17 20 22 25 27 30 35 40
CFS-1 0.25 12X12
40 32 - - - - - - - - - - - -
CFS-2 0.50 25X25
- 100 45 - - - - - - - - - - -
CFS-3 1 25X25
- - 140 120 70 35 - - - - - - - -
CFS-3A 1 38X38
- - 181 95 50 - - - - - - - - -
CFS-4A 1.5 38X38
- - - - - 160 130 90 175 - - - - -
CFS-4B 1.5 50X50
- - - - - 250 166 85 at 18mtr - - - -
CFS-5A 2 38X38
-       225 190 155 105 78 40
CFS-5B 2 50X50
- - 330 250 160 85 - - - - - - - -
CFS-6A 3 50X38
- - - - - - - 250 220 180 135 108 50 at 33 mtr
CFS-6B 3 50X50
- - - - - 330 310 300 250 160 85 - - -



Model H.P. Size Head in Meters Discharge in LPM at 2900 RPM
16 20 24 28 32 36 40 44 48
CFS-7A 5 50X38
- - 260 230 190 145 90 - -
CFS-7B 5 65X50
400 370 300 230 180 - - - -
CFS-8A 7.5 50X38
- - 290 280 250 225 190 120 60
CFS-8B 7.5 65X50
500 450 385 280 230 - - - -
CFS-9A 10 50X38
- 500 480 470 450 410 350 290 190
CFS-9B 10 65X50
560 510 450 370 280 200 150 - -
